QT-B2C-Leonelli Quadtech Adaptor cable to use Leonelli switch with UTIL-B harness

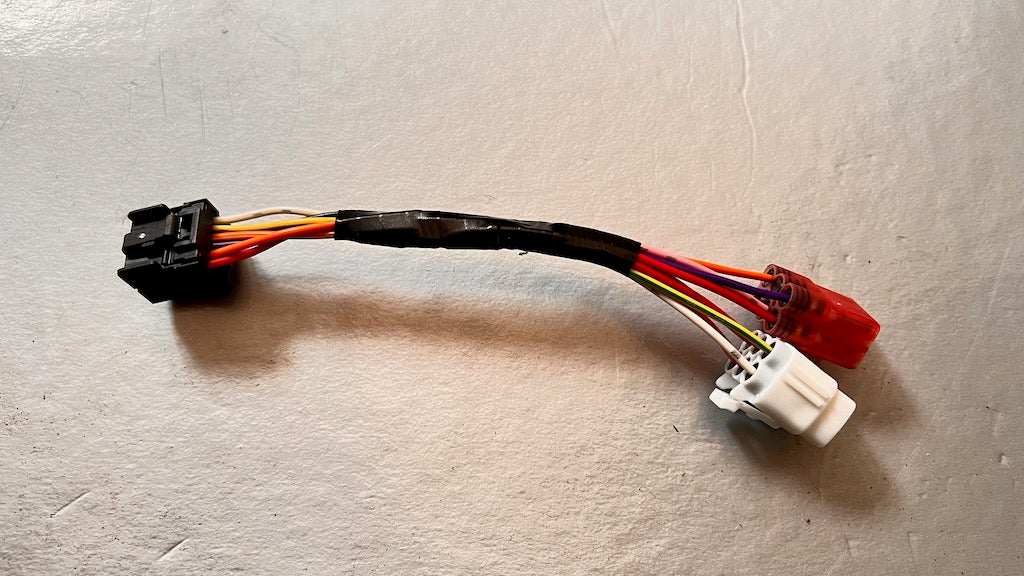

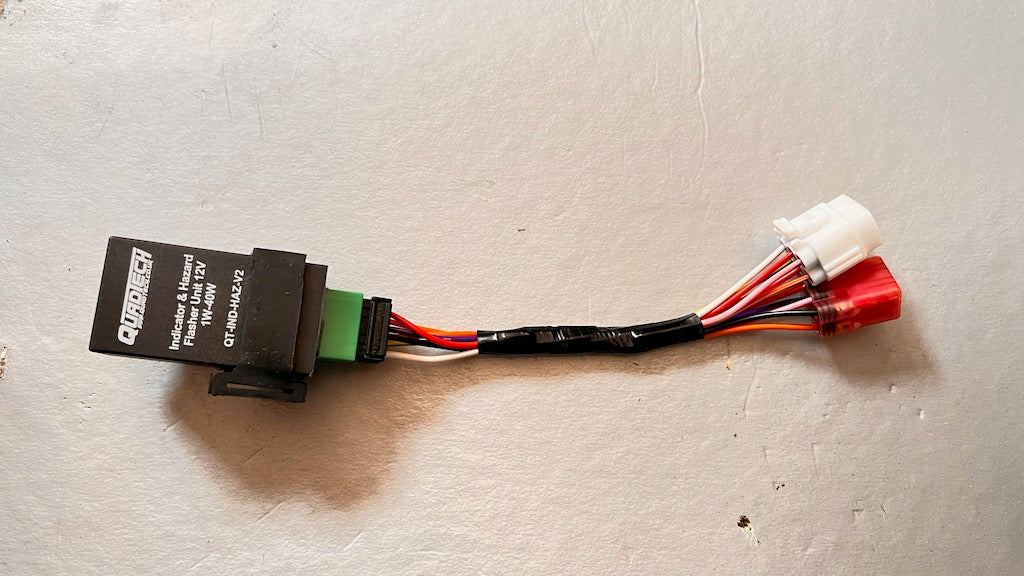

The harness has 3 plugs RED plug connects to UTIL-B harness White plug connects to Leonelli 044 or 144 switch Black plug connects to 12 pin indicator relay QT-IND-HAZ-V2 There are 3 versions of the UTIL-B harness To choose red or blue adaptor version: Find the 6 pin plug which the QT-HS-UTIL plugs into.

• If it is translucent coloured and has a blue wire matching to the blank terminal on the QT-HS-UTIL then select blue
• If it is translucent coloured and has a red wire matching to the blank terminal on the QT-HS-UTIL then select red
• If it is red coloured and has a red wire matching to the blank terminal on the QT-HS-UTIL then select red
