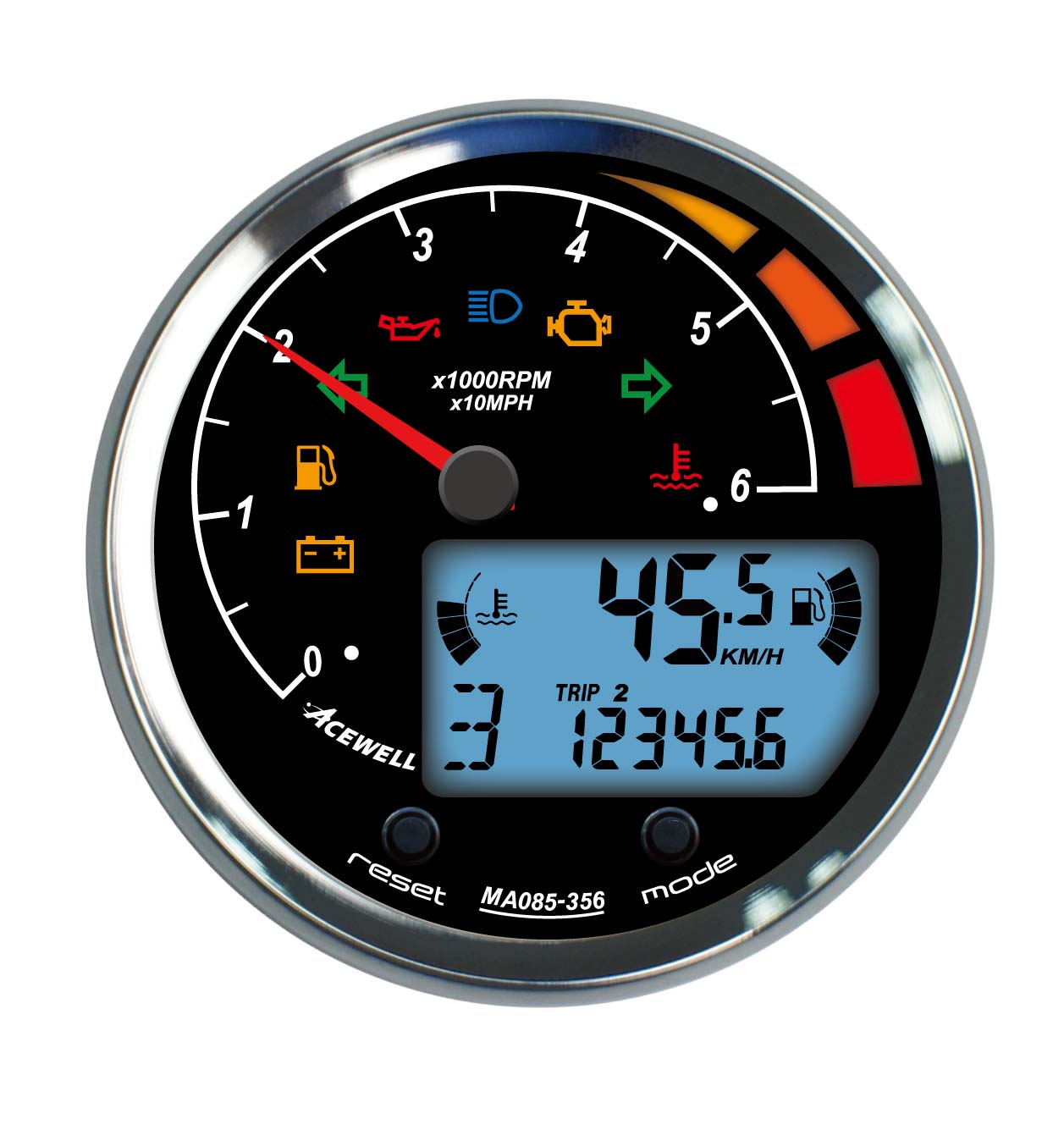

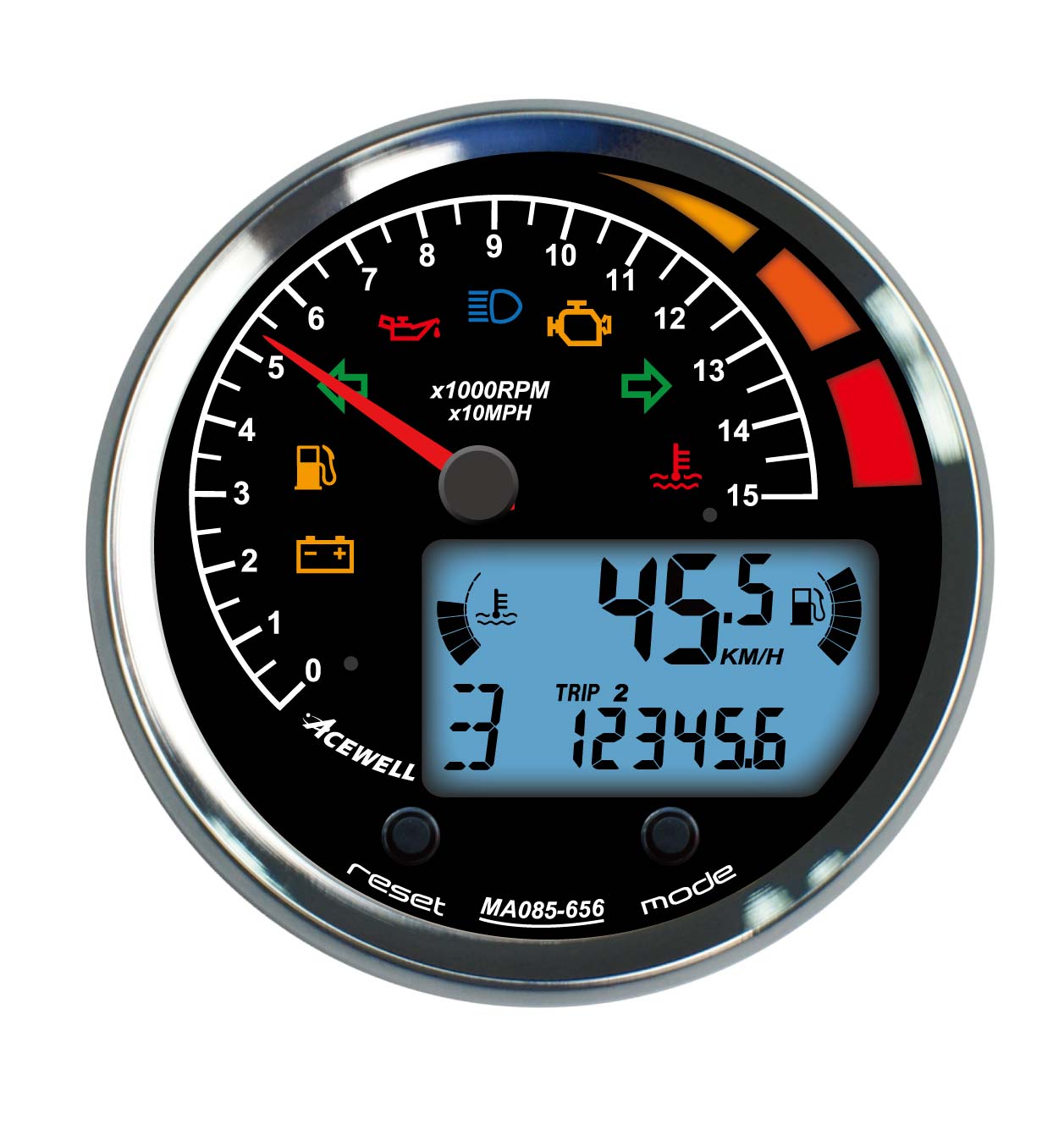

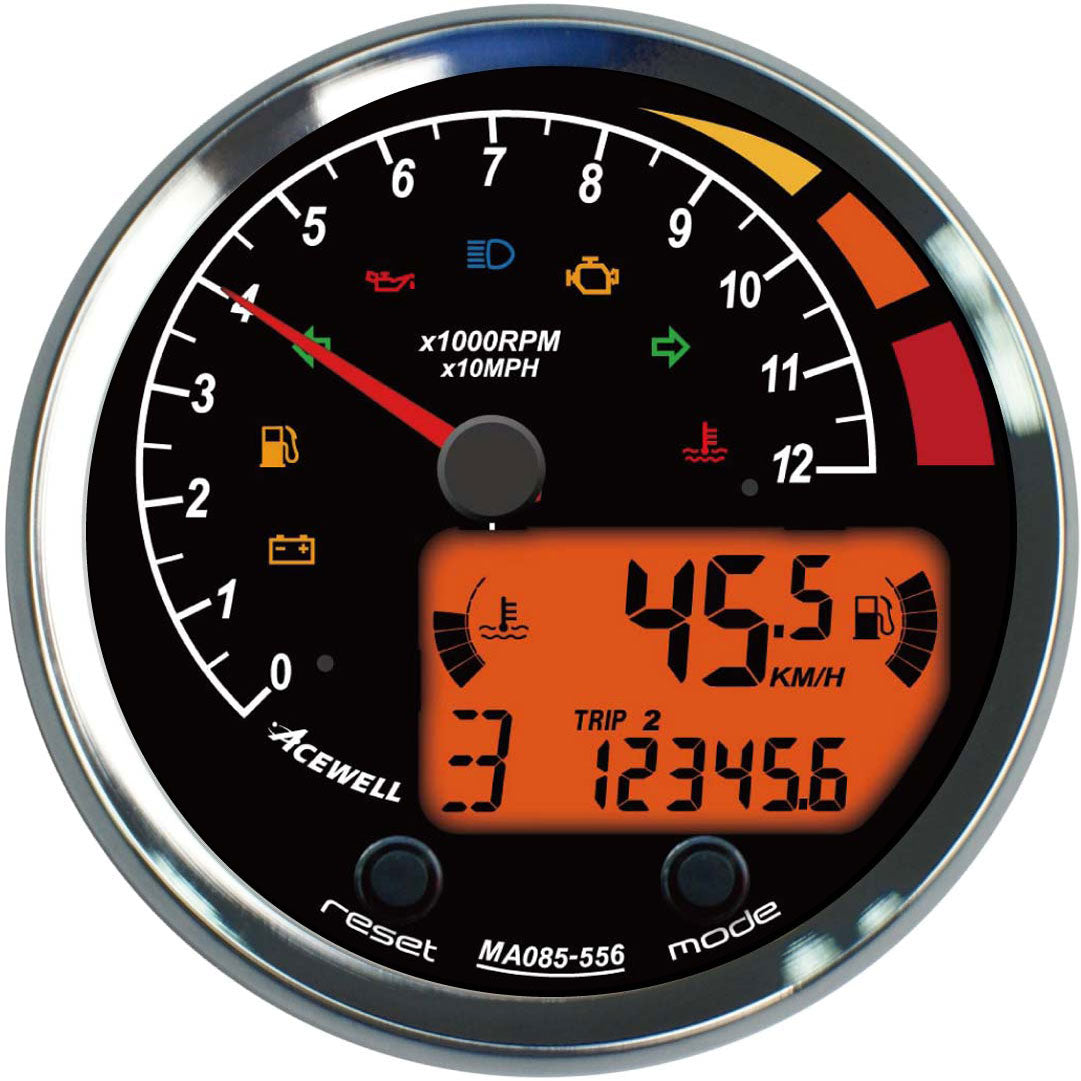

MA85 Acewell 85mm diameter analogue and digital gauge

MA85 Acewell 85mm diameter analogue and digital gauge

£190.00 GBP
£190.00 GBP
Sale Sold out
Taxes included.

ACEWELL ACE-MA85 Digital Dashboard

FEATURES:

  • Simultaneously displays tachometer, speedometer, fuel gauge and bar-graph temperature meter, gear indicator as well as one other digital readout.
  • Backlight can be switched with sidelights as per IVA / MSVA / MOT requirements
  • Warning lamps meet requirements of IVA / MSVA / MOT test
  • Needle tachometer available in 4 RPM ranges.
  • Needle can be switched between showing speed and RPM
  • Compatible with both car and motorcycle engined vehicles
  • Speed input can connect to included magnet/reed switch sensor or optional cable drive adaptor or directly to many speed sensors fitted to automotive gearboxes
  • Gear indicator calculates gear by comparing speed and RPM on manual gearboxes, so no additional sensors are required
  • 100% water resistant so can be fitted in beach buggies without worrying about rain damage
  • Includes RPM sensing wire, speed sensor, temperature sensor, and generic wiring harness
  • Voltage warning lamp can be configured for the voltages to come on and off to suit any vehicle
  • Programmable Fuel Gauge which can be set for 10-990 ohms resistance for both full and empty so that it can connect to almost any sender.
  • E-Marked for road vehicle use within Europe

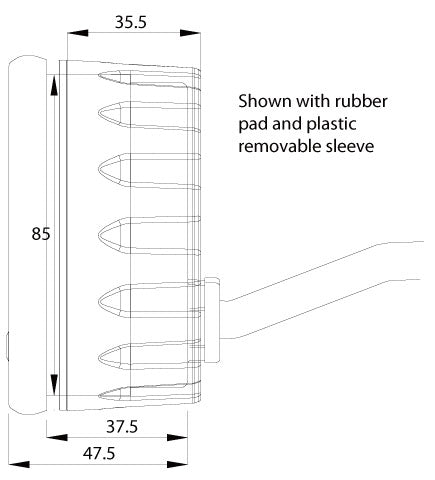

  • 85mm diameter main body x 65mm deep with 95mm diameter bezel and 95mm diameter sleeve

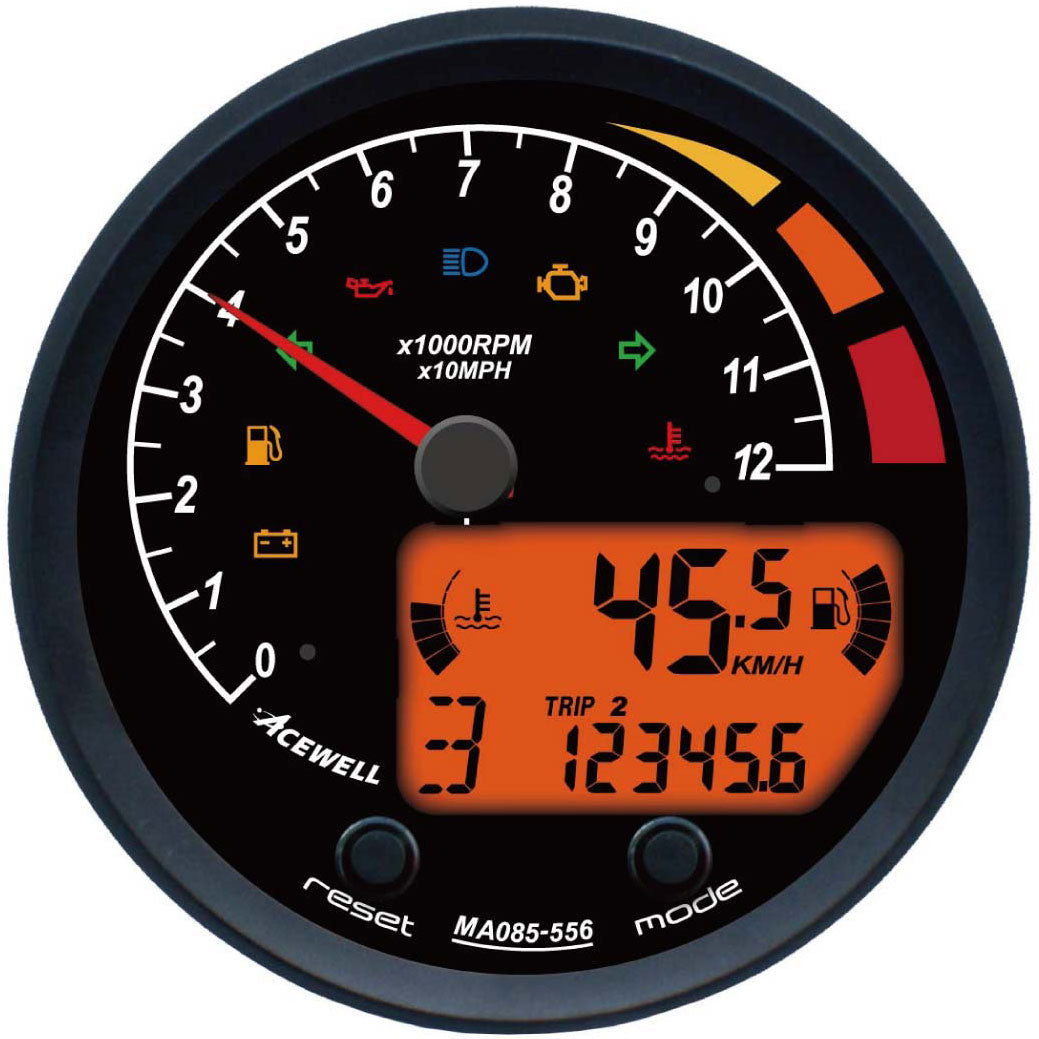

  • Top bezel available in chromed plastic / Black CNC Aluminium / Chromed CNC Aluminium
  • Screw on Sleeve available in black plastic / Black CNC Aluminium / Chromed CNC Aluminium
  • Screw on Sleeve to clamp speedometer through a panel with 85mm hole
  • Needle can show RPM or speed in MPH
  • Upper line of LCD shows speed in MPH only - there is no KM/H function
  • Screw on Sleeve to clamp speedometer through a panel with 85mm hole Each kit Includes:
    • 1 x Computer
    • 1 x Speed sensor (and ACE-M magnet for reed switches)
    • 1 x ACE-PT1/8 Temperature sensor 1/8 NPT which can be used for water or oil temp.
    • 1 x Set of cables & fitting instructions.
    COMPATIBLE WITH GEARBOX SPEED SENSORS
