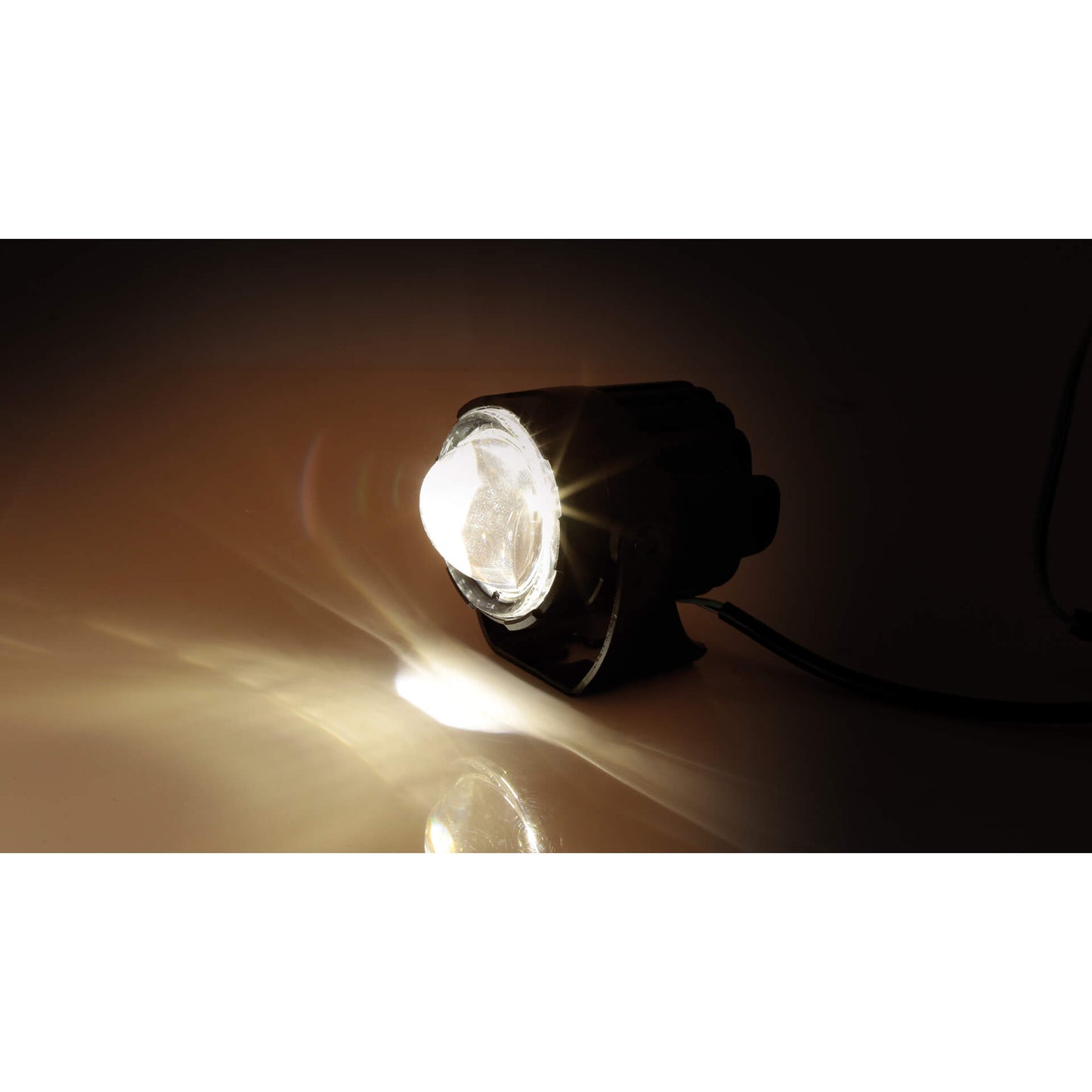

FT13-LOW Highsider HIGHSIDER LED Low Dip Beam Headlight

HIGHSIDER LED low beam headlight FT13- LOW, E-approved

Small LED low beam headlight, solidly manufactured and with high light output. The FT13- LOW is a powerful dipped beam headlamp with a round lens. The matt black housing of the headlamp is made of high-quality aluminium and is equipped with a robust steel bracket. The LED technology and the insert used produce a symmetrical, bright light for optimum perception. Together with the LED spotlight FT13- HIGH (to be ordered separately) a real dream team. The result is impressive: Ideal for conversions of all kinds and STVO-compliant thanks to the test mark.

The bright joy - give your bike your distinctive style! The unusual design and perfect technology of the HIGHSIDER headlight series will definitely make you a highlight!

dimensions:
diameter: 55 mm
diameter lens: 44 mm
distance of the fixing holes: 54 mm
fixing holes on the side: M4
depth of the housing /from fixing point: 70 mm / 40 mm

dimensions of the e-box:
width: 53.3 mm
depth: 33.5 mm
height: 15 mm
weight: 0.23 kg

material housing: aluminium
material holder: steel

connections:
white = low beam (+)
green = mass (-)

scope of delivery: 1 piece, including mounting material and E-box for voltage control

NOTES:
- EMC ready
- WITHOUT parking light!!
- The headlight must never be connected without the supplied black electronic box (voltage control).
