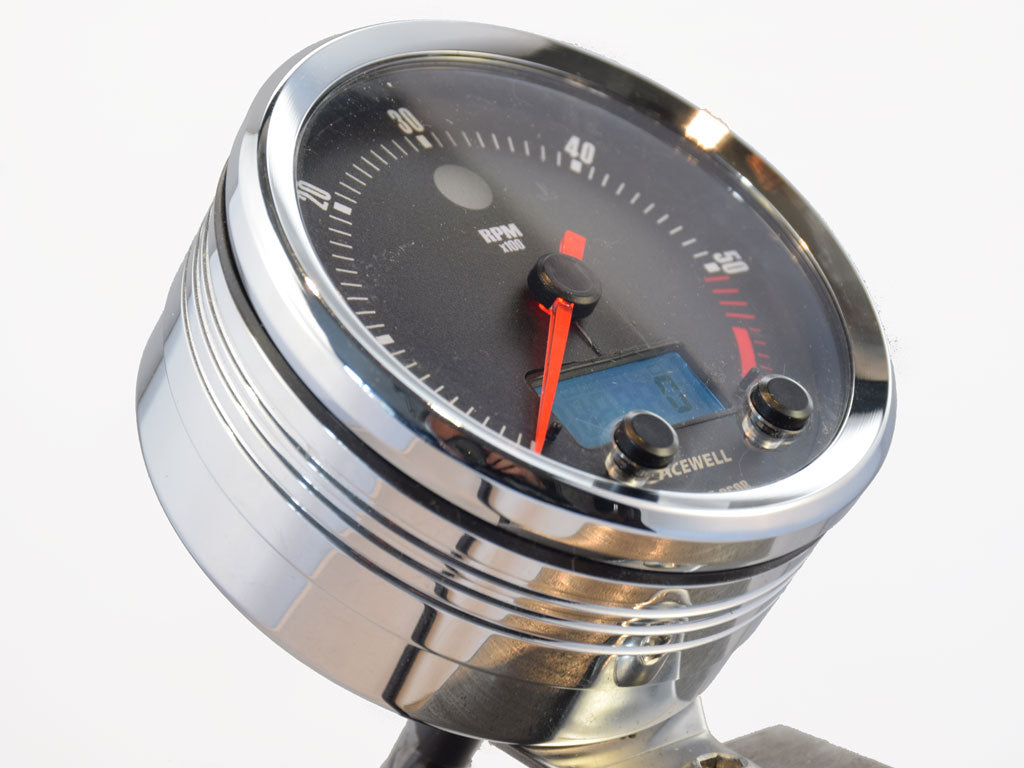

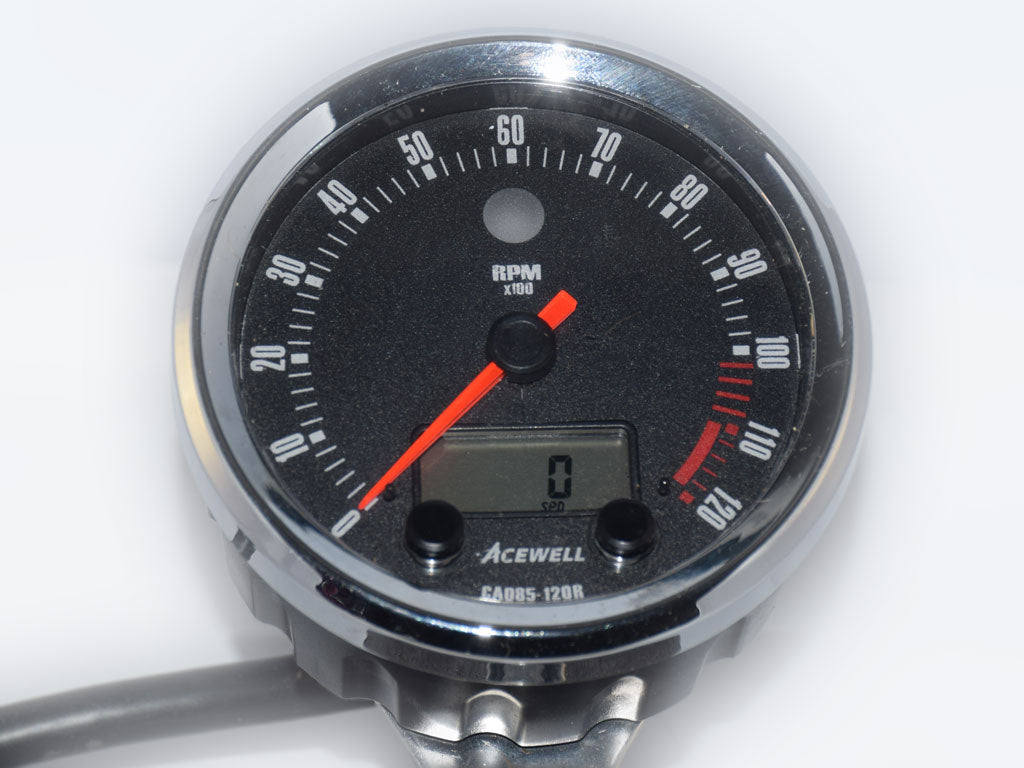

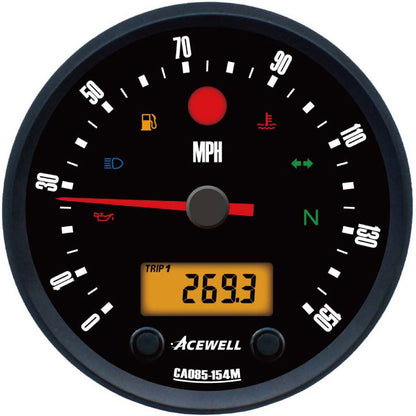

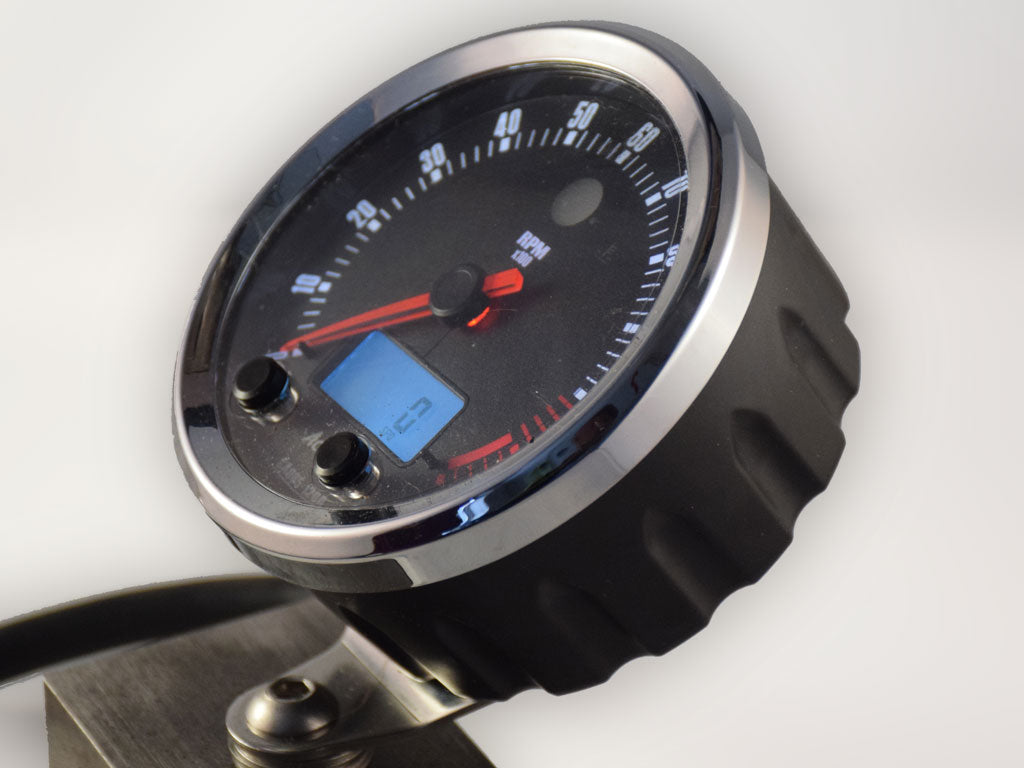

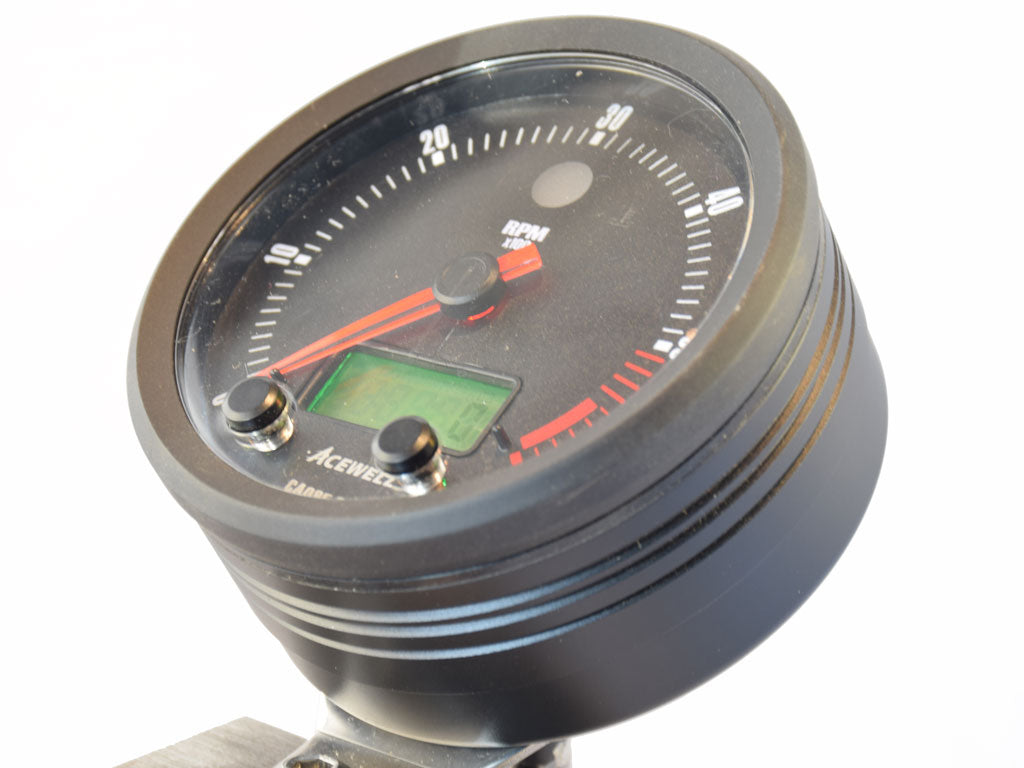

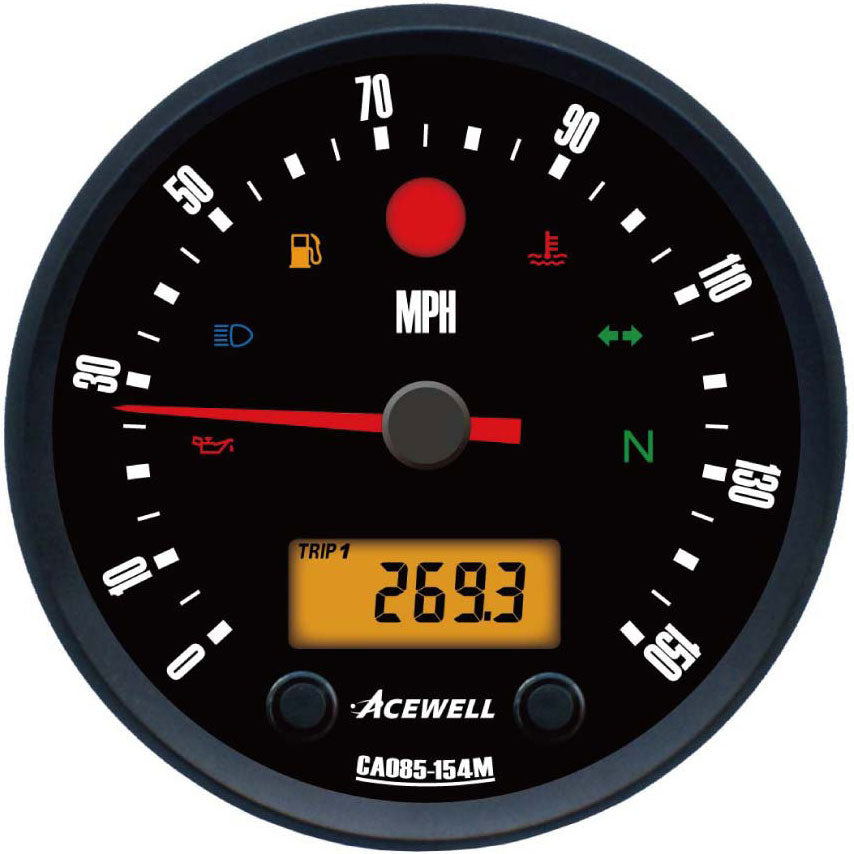

CA85 British Face Acewell 85mm diameter British Style analogue gauge with digital panel

CA85 British Face Acewell 85mm diameter British Style analogue gauge with digital panel

£165.00 GBP
£165.00 GBP
Sale Sold out
The British style gauge comes with several scale options for both speed in MPH and RPM. The dash can be fitted through an 85mm hole in the dash or mounted on the standard Acewell mounting bracket.
Scale options:
  • 90 MPH
  • 120 MPH
  • 150 MPH

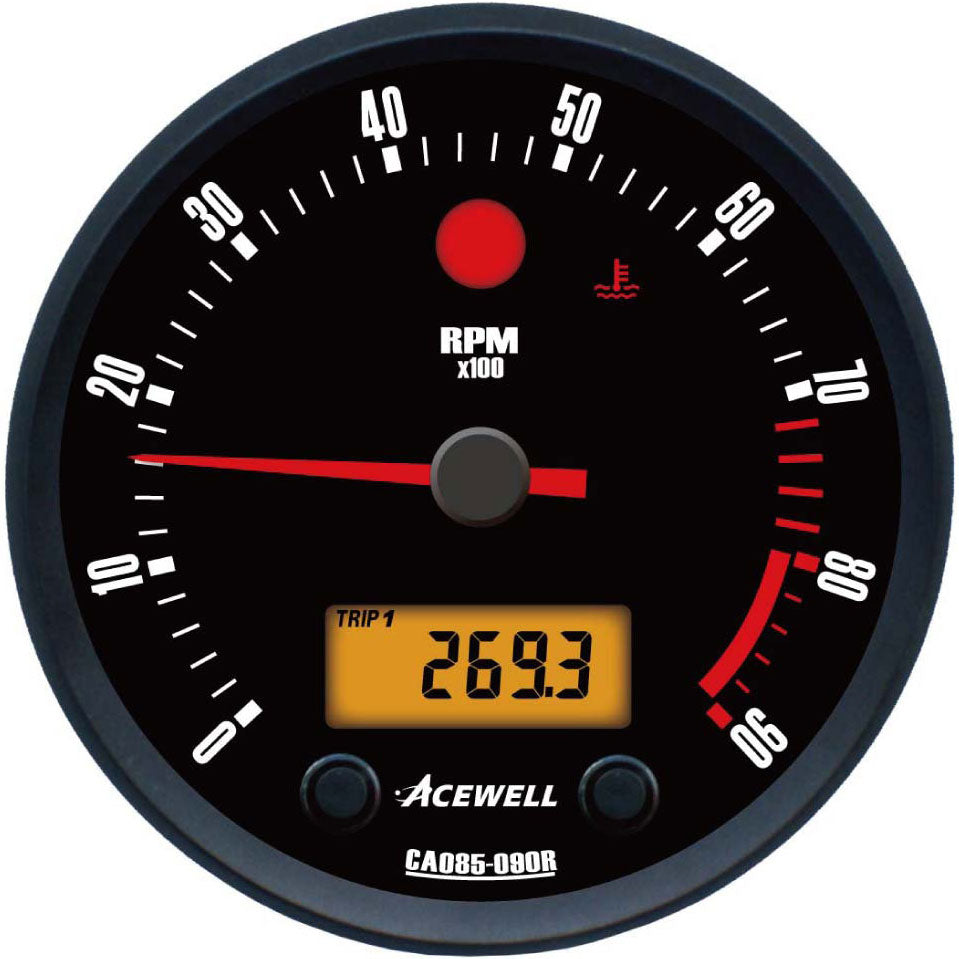

  • 6000 RPM
  • 9000 RPM
  • 12000 RPM
Features include
  • Needle speedometer / rev counter - choose below
  • Needle primary scale in white print and illuminates in deep blue
  • Full compliment of warning lamps on speedo / Temperature warning on Rev counter
  • Digital speedometer up to 186mph / 399.9 km/h
  • 2 trip meters TRIP 1 + 2
  • Odometer (Total mileage)
  • Digital speed display to 19,900 RPM
  • Display average and maximum speeds
  • Display maximum RPM
  • Digital Temperature gauge and max temperature display (C/F)
  • Clock
  • Voltmeter
  • Travel time (one resetable and one non-resetable)
  • Engine hour meter
  • LCD adjustable backlight colour (3 levels of red, green, blue) comes on with ignition
  • Analogue scale backlight switched independently from LCD
  • Clock shown in standby mode with ignition off
  • Adjustable wheel circumference for all types of wheels. Ssetting range 1-3999 mm
  • Compatible with cable drive / gearbox electric speed sensors and magnet pickups
  • Kilometers or miles - display can be switched
  • When new, and until odometer reaches 18 miles / 30km the odometer can be edited to enter reading from a previous speedometer
  • Maintenance reminder
  • Water resistant, vibration and shockproof ( 8G vibration , shock 100G tested )
  • E- certified
  • ACE-IHY bracket included
  • Cables harness tails to solder into the bike included
Dimensions:
  • Bezel (top ring) 100mm outer diameter (plastic) / 95mm outer diameter (CNC)
  • Sleeve 95mm outer diameter
  • Total depth 47mm
  • Visible depth if panel mounted 10mm
  • Hole 85mm diameter for panel mounting
If you would like to be able to also display RPM on the version with MPH face select dual mode option. If you would like to be able to also display Speed on the version with RPM face select dual mode option. If you only need to show RPM on RPM face or Speed on MPH face then choose single mode In "single mode as shown on the face" please note the following:
  • RPM Face - the LCD can shpw RPM and max RPM - all Speed, trip and odometer functions are disabled
  • Speed Face - the LCD can shpw Speed, trip, odometer max Speed - all RPM functions are disabled
Speed only / speed & RPM mode
  • In "Speed only" mode:
    • The LCD can show Speed, trip, odometer max Speed
    • all RPM functions are disabled
  • In dual mode, to toggle the needle function between RPM and Speedo:
    • Press right or left button repeatedly until the odometer is displayed in the LCD.
    • Press the mode (right button) for about 3 seconds.
    • "nEEdLE" and either SPD or RPM will be displayed.
    • Press again to toggle between needle functions.
  • When RPM is shown on the needle, the LCD will show speed whenever the vehicle is moving to comply with VOSA regulations.
This video shows how to switch the needle between RPM and Speed: This video shows how to configure the CA85 between RPM only, Speedo only, and RPM & Speed both activated.
