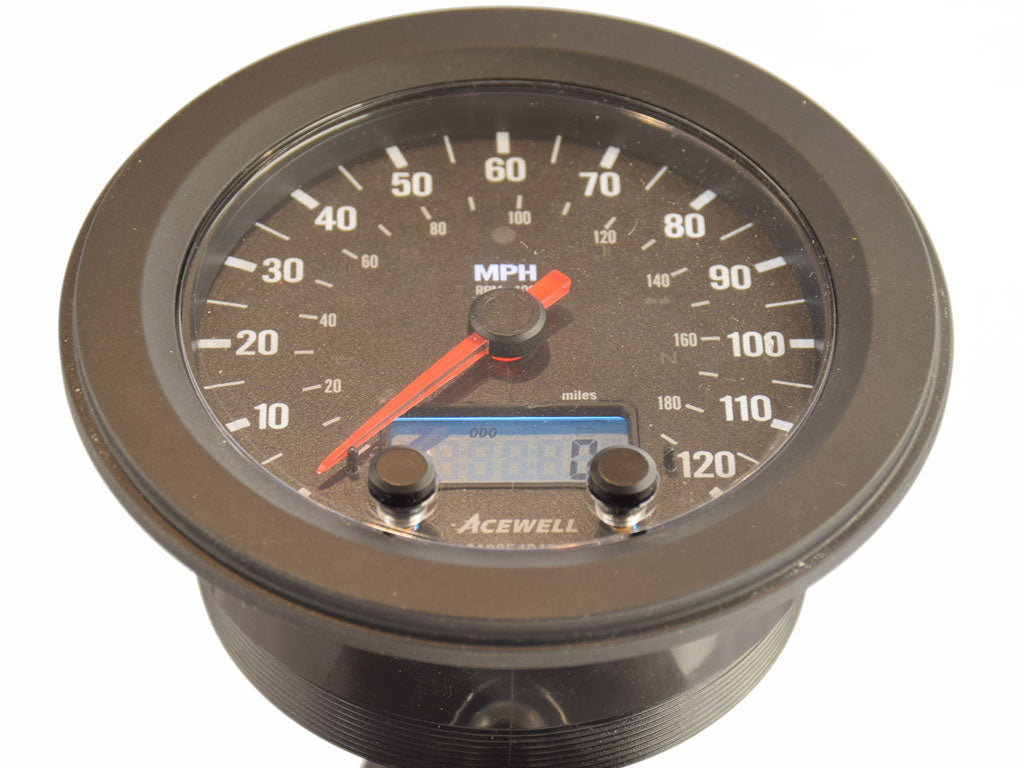

CA85 BMW R80-R100-GS Plug-and-Play Acewell 100mm diameter speedometer to fit BMW R80 R100 GS G/S Plug and Play
CA85 BMW R80-R100-GS Plug-and-Play Acewell 100mm diameter speedometer to fit BMW R80 R100 GS G/S Plug and Play
Regular price
£213.00 GBP
Regular price
Sale price
£213.00 GBP
Quantity
Couldn't load pickup availability
The BMW R80 R100 GS G/S Plug and Play gauge comes with several scale options for both speed in MPH and RPM.

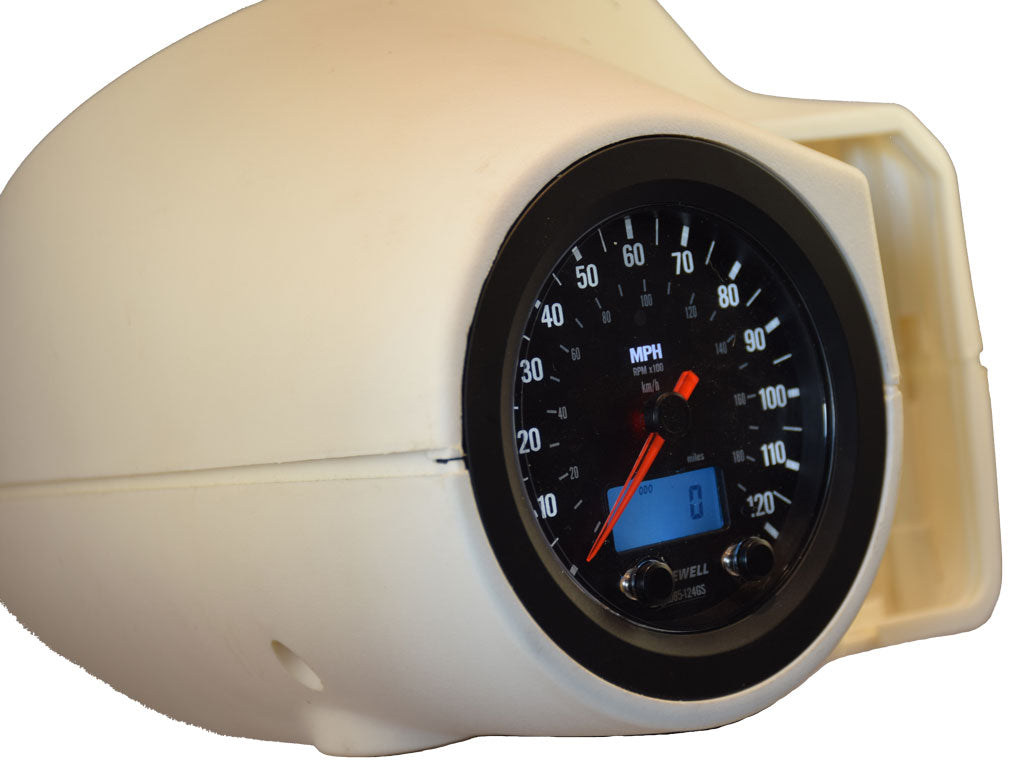

The dash is designed to be fitted into the original headlight binnacle.
The speedometer is plug and play for speed sensor, power supply and RPM. The warning lamps can be connected but will need to be "piggy backed" onto the wires that connect to the original warning lamps.

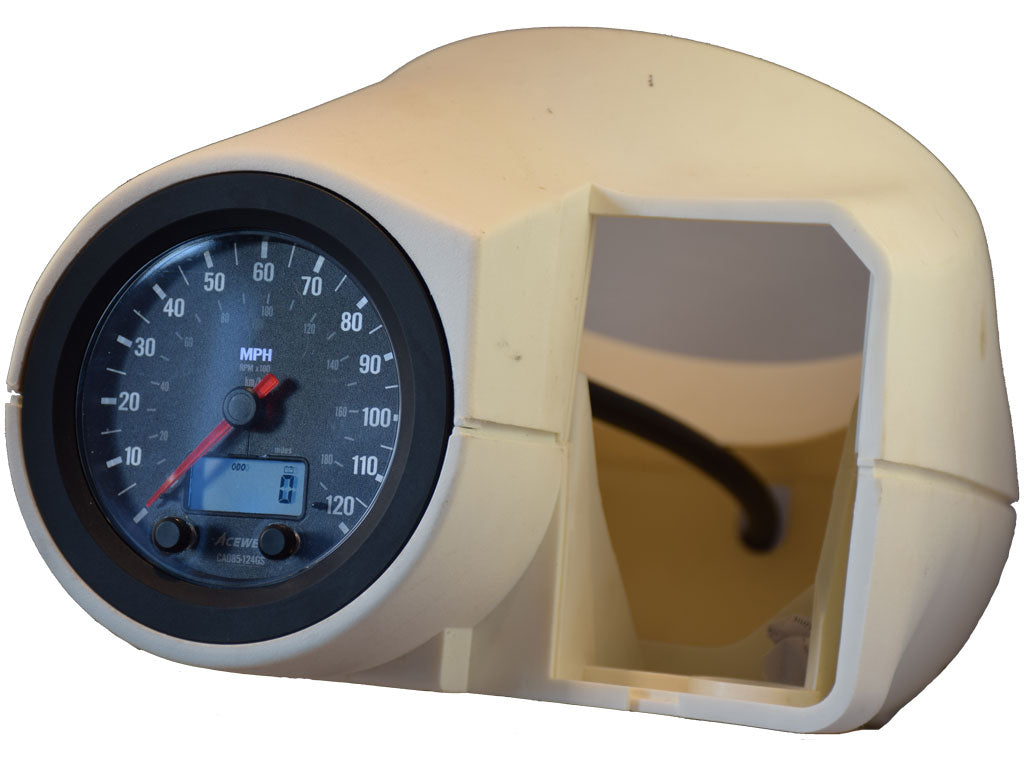

Please note the shape of the binnacle in the photographs. If you do not have the binnacle the same as shown it will not fit. It will not plug and play in the binnacle that has a speedo and rev counter mounted side-by-side, it needs to be hard wired instead and the optional 103mm mounting ring is required.
The plug-and-play connector uses the connector that the OEM rev counter / tacho plugs into. If you need to retain the original electronic tacho then choose the optional loop-through connector to give a male and female round 4 pin connector.
Please note the shape of the binnacle in the photographs. If you do not have the binnacle the same as shown it will not fit. It will not plug and play in the binnacle that has a speedo and rev counter mounted side-by-side, it needs to be hard wired instead and the optional 103mm mounting ring is required.
The plug-and-play connector uses the connector that the OEM rev counter / tacho plugs into. If you need to retain the original electronic tacho then choose the optional loop-through connector to give a male and female round 4 pin connector.

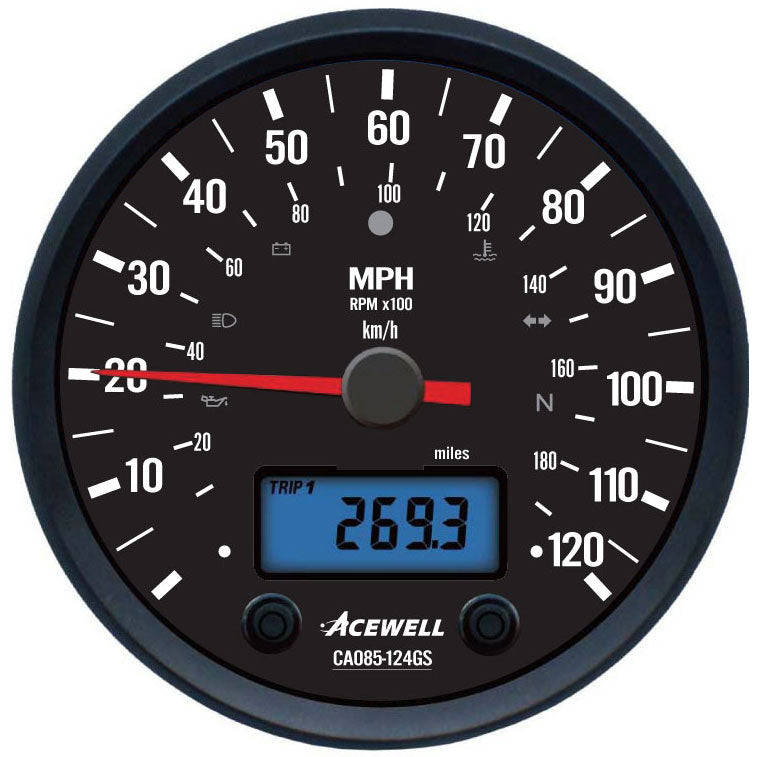

Scale options:
- 120 MPH and 12000RPM
- 120MPH, 190KM/H and 12000RPM
- 190KM/H, 120MPH and 12000RPM
- Needle speedometer / rev counter - choose below
- Needle primary scale in white print
- Secondary scale in white print (does not illuminate)
- Digital speedometer up to 186mph / 399.9 km/h
- 2 trip meters TRIP 1 + 2
- Odometer (Total mileage)
- Digital speed display to 19,900 RPM
- Display average and maximum speeds
- Display maximum RPM
- Digital Temperature gauge and max temperature display (C/F)
- Clock
- Voltmeter
- Travel time (one resettable and one non-resettable)
- Engine hour meter
- LCD adjustable backlight colour (3 levels of red, green, blue) comes on with ignition
- Analogue scale backlight switched independently from LCD
- Clock shown in standby mode with ignition off
- Adjustable wheel circumference for all types of wheels. Setting range 1-3999 mm
- Compatible with cable drive / gearbox electric speed sensors and magnet pickups
- Kilometers or miles
- When new, and until odometer reaches 18 miles / 30km the odometer can be edited to enter reading from a previous speedometer
- Maintenance reminder
- Water resistant, vibration and shockproof ( 8G vibration , shock 100G tested )
- E- certified
- Cables harness tails to plug-and-play to the bike
- ACE-S11 gearbox sensor to connect to BMW R2 gearboxes

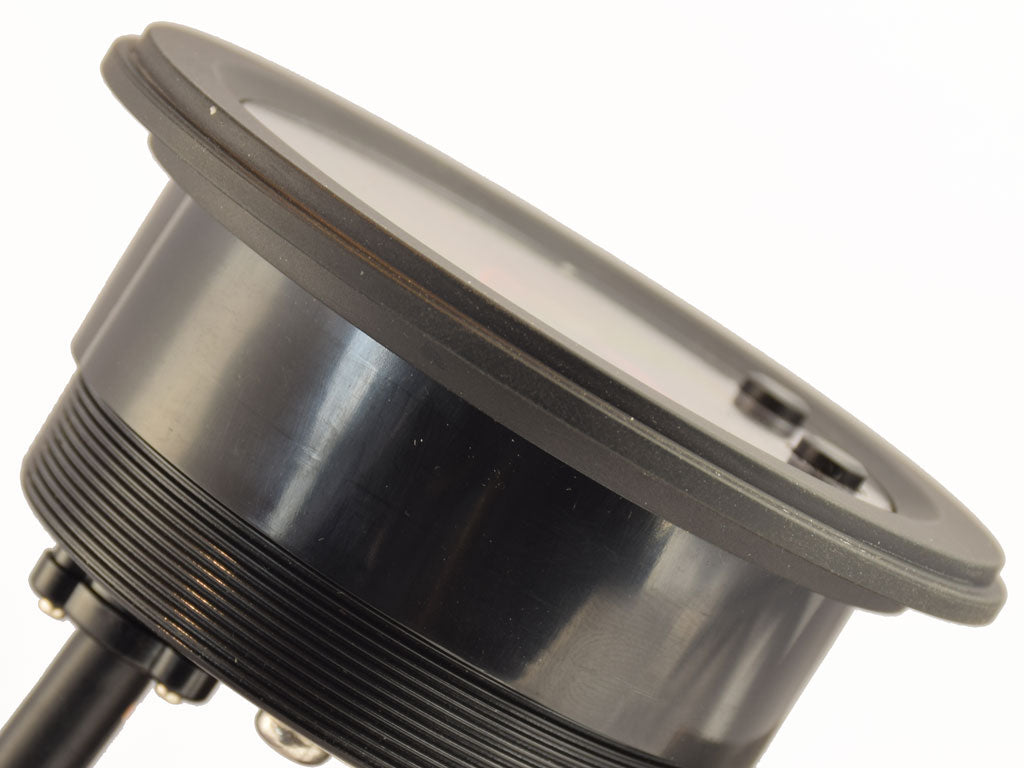

- CNC Bezel (top ring) to fit into original binnacle
- Total depth 47mm
