CA80-KBSI Acewell 80mm diameter speedo and RPM K1 K75 K100 K1100 plug and play

ACEWELL ACE-CA080 Digital Dashboard pre-wired to KBSI interface module to connect to BMW K75 K1 K100 K1100 motorcycles

FEATURES:

• Simultaneously displays tachometer, speedometer, fuel gauge and bar-graph temperature meter, gear indicator as well as one other digital readout.
• Backlight can be switched with sidelights as per IVA / MSVA / MOT requirements
• Warning lamps meet requirements of IVA / MSVA / MOT test
• Needle tachometer to 9000RPM (CA80-400).
• Needle tachometer to 120MPH / 12000RPM (CA80-120).
• Speed input from K bike speed sensor
• Gear indicator calculates gear by comparing speed and RPM on manual gearboxes, so no additional sensors are required

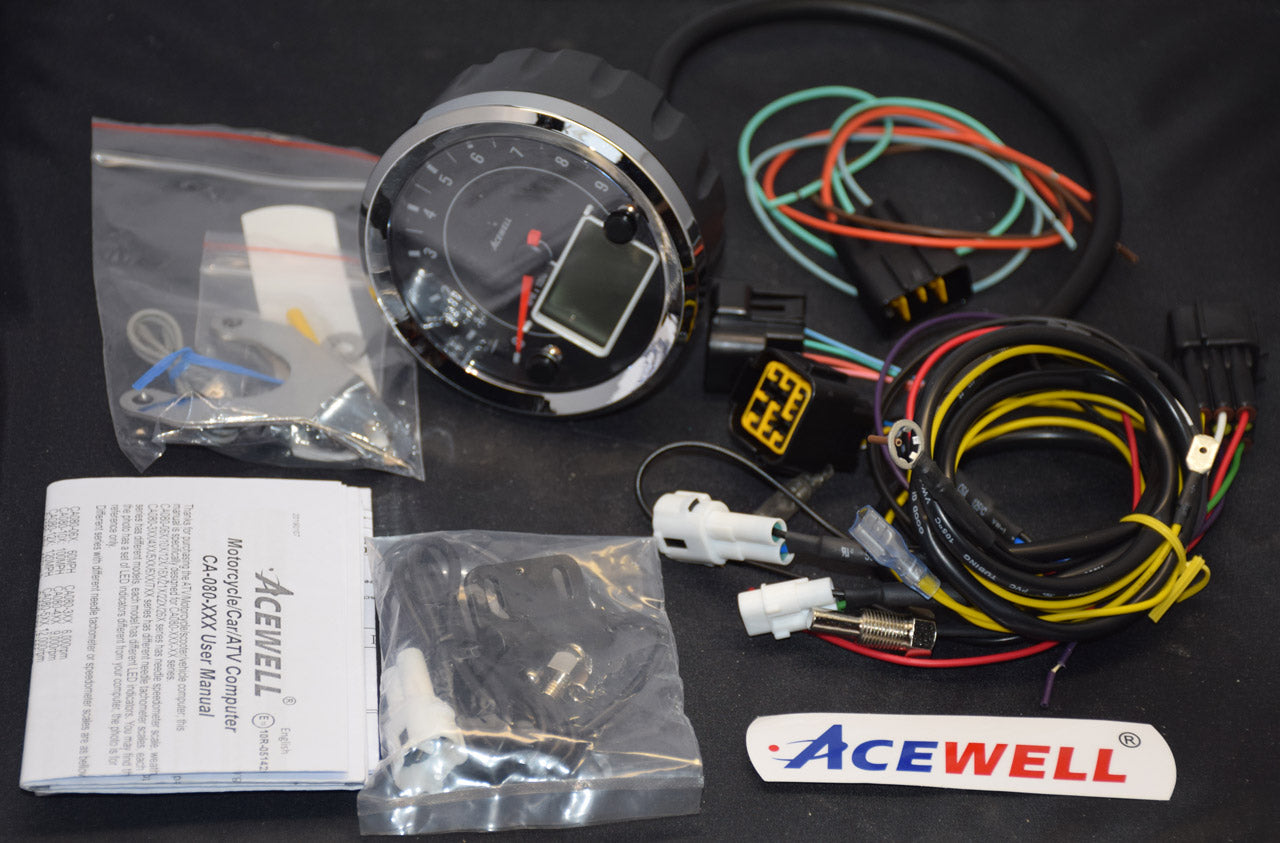

• Plug and play cable harness
• Includes a temperature sensor to fit inline in a radiator hose
• Voltage warning lamp can be configured for the voltages to come on and off to suit any vehicle
• Programmable Fuel Gauge which can be set for 10-990 ohms resistance for both full and empty so that it can connect to BMW K bike sensor.
• E-Marked for road vehicle use within Europe
• 80mm diameter main body x 41mm deep with 90mm diameter bezel and 90mm diameter sleeve

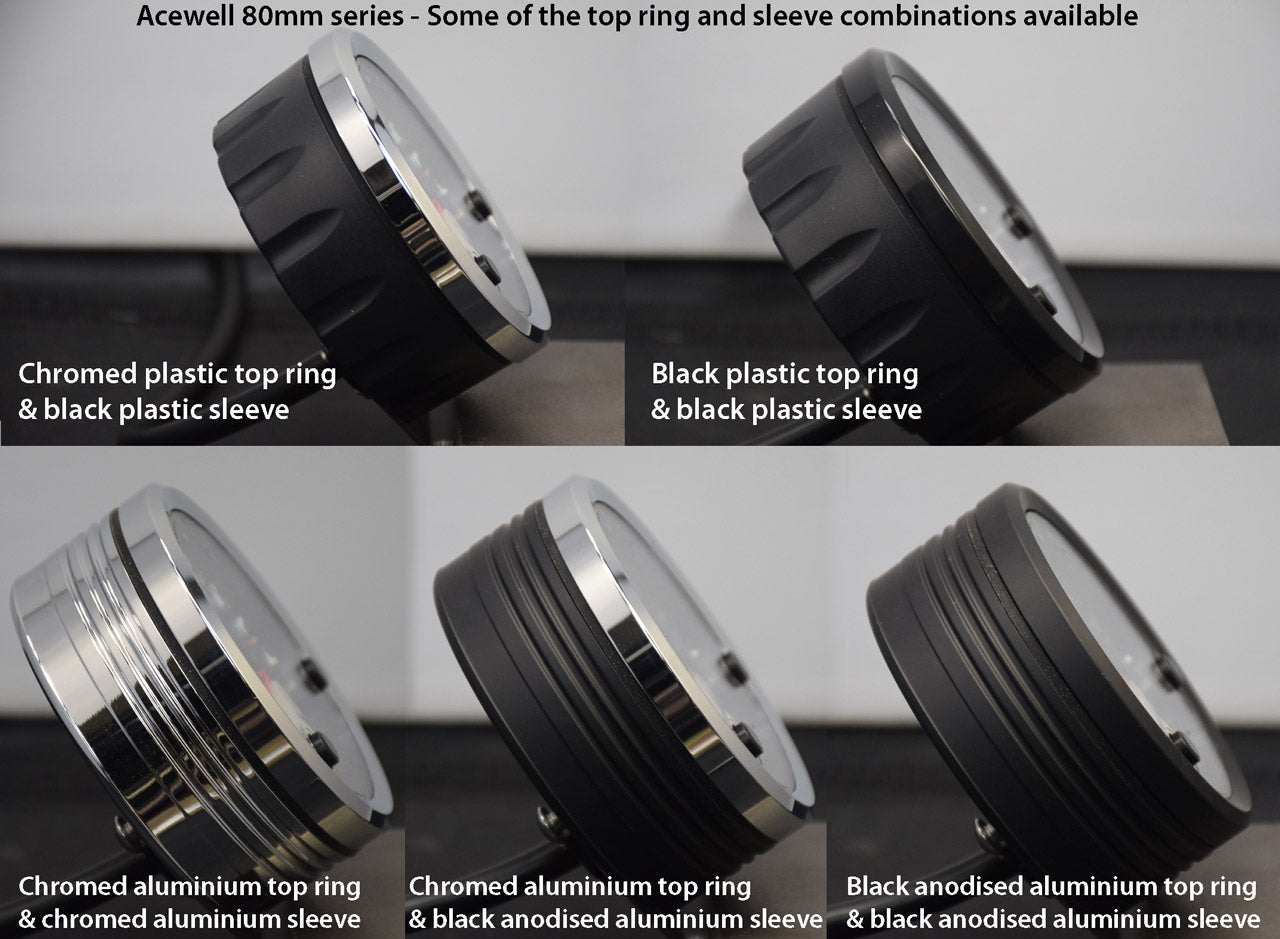

• Top bezel available in chromed plastic / Black CNC Aluminium / Chromed CNC Aluminium
• Screw on Sleeve available in black plastic / Black CNC Aluminium / Chromed CNC Aluminium
• Screw on Sleeve to clamp speedometer through a panel with 80mm hole
• Upper line of LCD shows speed in MPH or KM/H
