CA80-120 Acewell 80mm diameter analogue (0-120) speedo (0-12k) tacho with large digital display

ACEWELL ACE-CA080 Digital Dashboard

FEATURES:

• Simultaneously displays tachometer, speedometer, fuel gauge and bar-graph temperature meter, gear indicator as well as one other digital readout.
• Backlight can be switched with sidelights as per IVA / MSVA / MOT requirements
• Warning lamps meet requirements of IVA / MSVA / MOT test
• Needle tachometer / speedometer to 120mph / km/h or 12000RPM.
• Needle can be switched between showing speed and RPM
• Compatible with both car and motorcycle engined vehicles
• Speed input can connect to included magnet/reed switch sensor or optional cable drive adaptor or directly to many speed sensors fitted to automotive gearboxes
• Gear indicator calculates gear by comparing speed and RPM on manual gearboxes, so no additional sensors are required
• 100% water resistant so can be fitted in beach buggies without worrying about rain damage
• Includes RPM sensing wire, speed sensor, temperature sensor, and generic wiring harness
• Voltage warning lamp can be configured for the voltages to come on and off to suit any vehicle
• Programmable Fuel Gauge which can be set for 10-990 ohms resistance for both full and empty so that it can connect to almost any sender.
• E-Marked for road vehicle use within Europe
• 80mm diameter main body x 41mm deep with 90mm diameter bezel and 90mm diameter sleeve

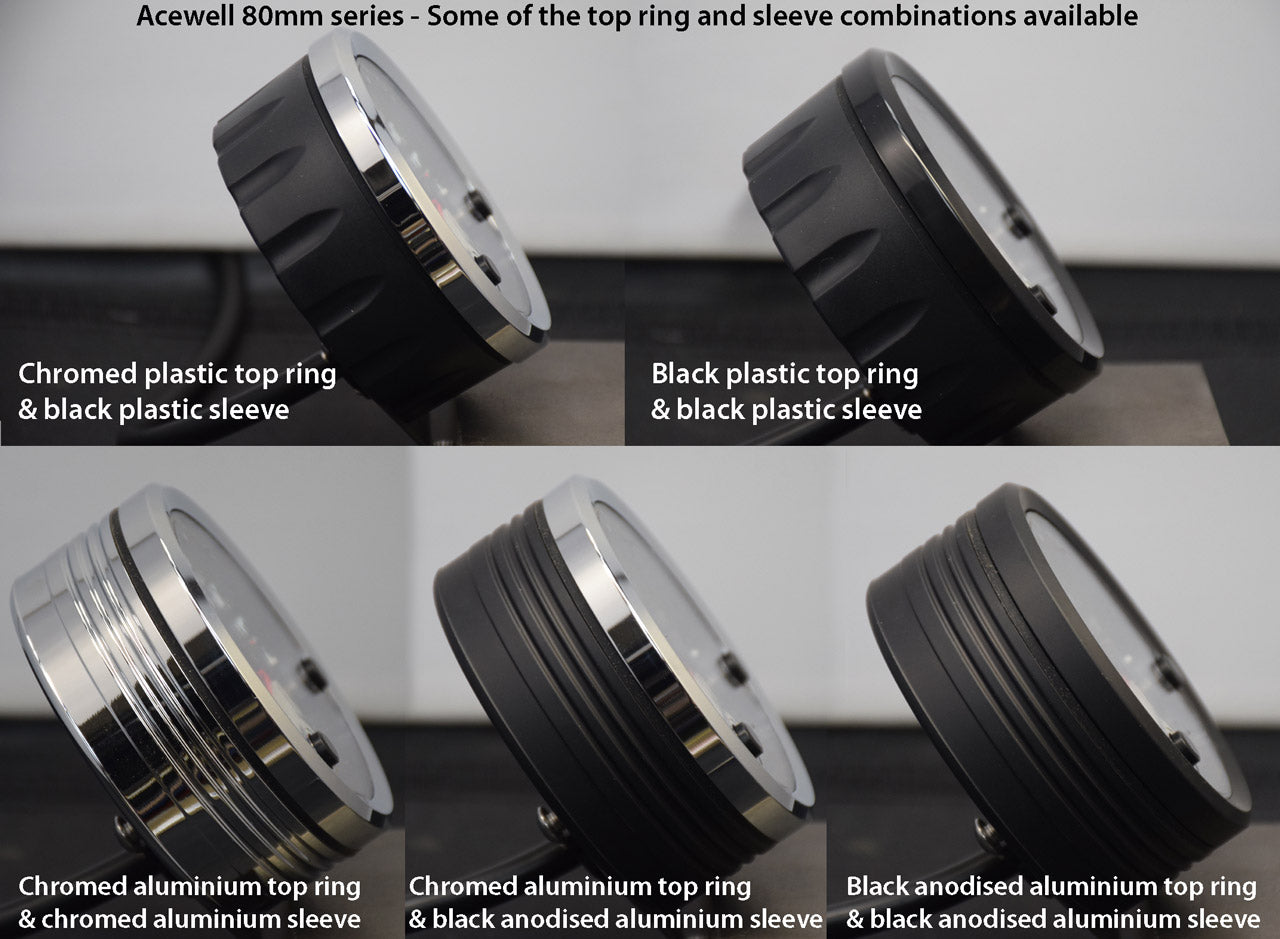

• Top bezel available in chromed plastic / Black CNC Aluminium / Chromed CNC Aluminium
• Screw on Sleeve available in black plastic / Black CNC Aluminium / Chromed CNC Aluminium
• Screw on Sleeve to clamp speedometer through a panel with 80mm hole
• Needle can show RPM or speed in MPH / KM/H
• Upper line of LCD shows speed in MPH or KM/H

COMPATIBLE WITH GEARBOX SPEED SENSORS
