Integrated controls : NO external control box

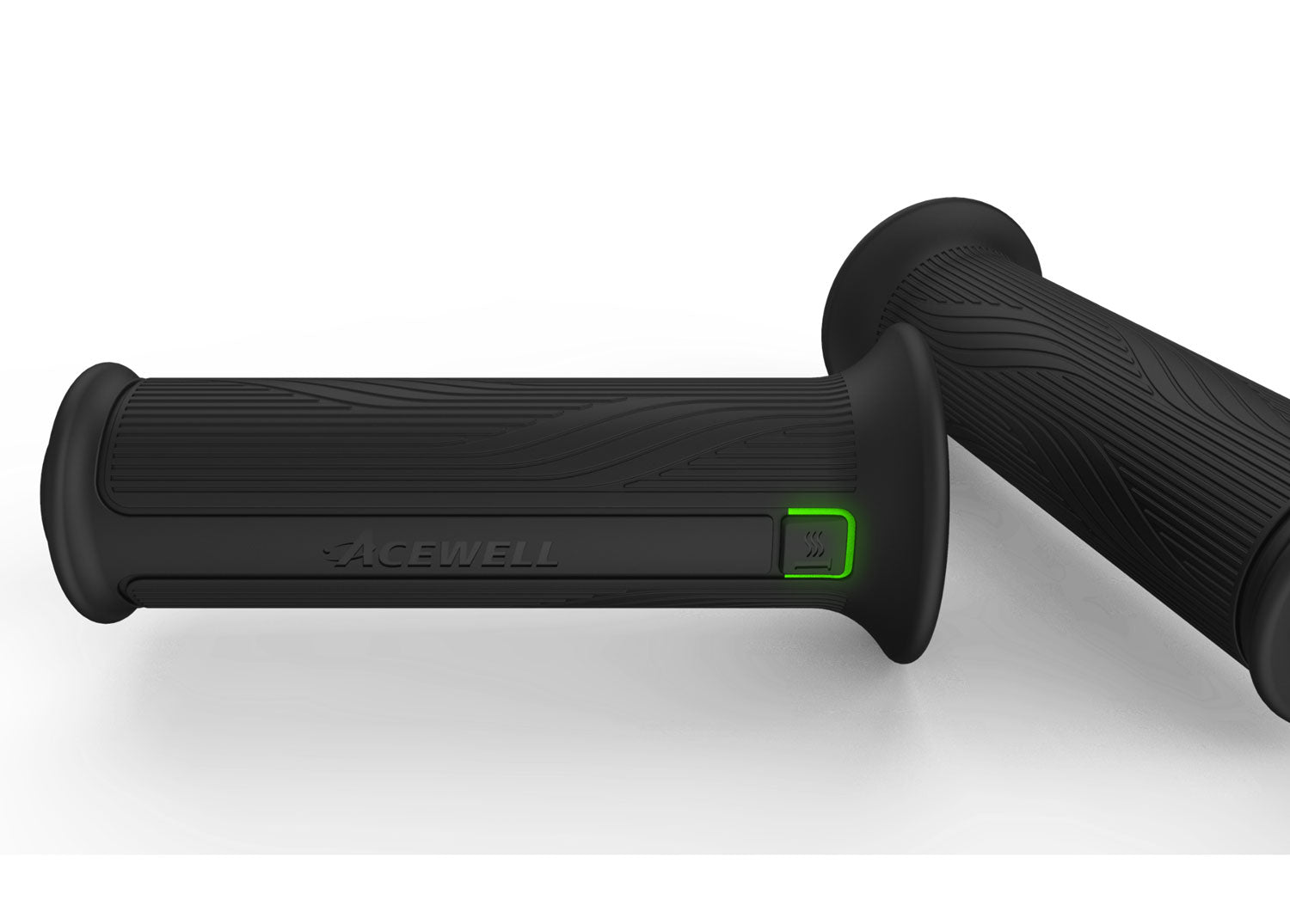

• Acewell HG-20 grips fit any 7/8" / 22mm handlebars to work with existing twist grip throttle tubes
• Push button temperature controller and power level display built into the left grip allows an easy installation and no need for additional switches
• 5 levels of grip heat temperature
• 5 colour illumination of the control button to indicator selected temperature
• The integrated control / display module keeps the original look of the bike but still allows full functonality of the grips
• Classic slimline design which suits all types of motorcycle
• Hard wearing and anti-slip silicone outer layer giving soft but durable texture
• Low voltage detection - the grips automatically switch off to help protect against a flat battery.
• They can be connected directly to the battery terminals without worrying about forgetting to switch them off
• Simple installation with minimal wiring and detailed fitting instructions.
• 119mm long
• Left grip inner diameter is 22mm to fit 7/8" bars, right grip has a larger inner diameter to fit onto a throttle tube
• NOTE: THEY DO NOT FIT HARLEY DAVIDSON BIKES WHICH HAVE 1" HANDLEBARS

V1 software - this is designed for the grips to connect to the battery and will automatically switch off when the engine stops, they come back on automatically if the engine is started within 5 minutes of being switched off
V2 software - this is designed to work as V1 or you can connect to ignition live and the grips will switch back on when the engine is restarted after the key is turned off and on again.
