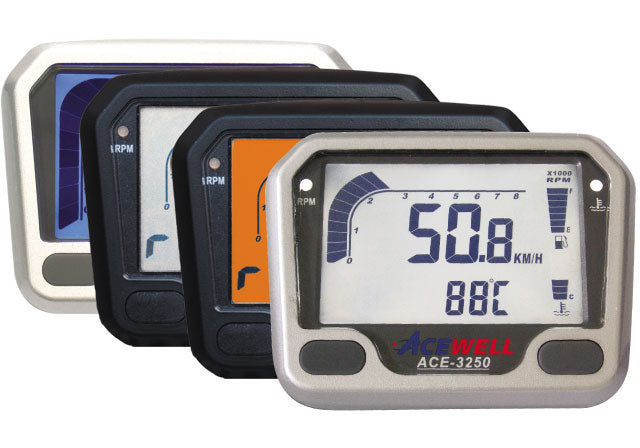

ACE-3xxx Build your own Acewell Speedometer, warning lamps, rpm, temp
ACE-3xxx Build your own Acewell Speedometer, warning lamps, rpm, temp
Regular price
£90.98 GBP
Regular price
Sale price
£90.98 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Features
ACE-3100 NOT COMPATIBLE WITH GEARBOX SPEED SENSORS
ACE-3252 IS COMPATIBLE WITH GEARBOX SPEED SENSORS
ACE-3254 IS COMPATIBLE WITH GEARBOX SPEED SENSORS
- Digital multifunction LCD ATV / Motorcycle computer displays analogue and digital tachometer, speedometer, voltmeter, temperature gauge, fuel gauge and clock.
- Grey display surround & silver and black case, Non Waterproof plugs (ACE-3100/3254)
- Black display surround & black case, Waterproof plugs (ACE-3252)
- LCD has 2 digital rows
- analogue 11000 RPM bar-graphic display with blue LED backlight (ACE-3100)
- analogue switchable 8000 / 16000 RPM bar-graphic display with orange LED backlight (ACE-3252)
- analogue switchable 8000 / 16000 RPM bar-graphic display with white LED backlight (ACE-3254)
- Odometer and total riding timer cannot be reset and are permanently stored in memory
- End user is able to modify the odometer value whilst it displays less than 30km. This allows the purchaser to pre-set the reading to match the speedometer they are replacing (ACE-3252/3254)
- Displays clock when in standby mode
- Can be easily switched between MPH and KMH
- Adjustable wheel circumference from 1 to 3999mm
- Fuel gauge can work with 100/250/510 ohm senders (full is low resistance) or can be switched off if not required (ACE-3252/3254)
- Temperature gauge and hi temp warning lamp (ACE-3252/3254)
- Fully waterproof
- Includes bracket, speed sensor and wiring harness
- Vibration (8G) and mechanical shock (10G) tested
- EMI / EMS tested, E-Mark certificate
- Dimensions: 128mm x 78mm x 28.5mm
| ACE-3951 |  |
 |
 |
 |
non-waterproof plugs NOT compatible with billet cases |
(ACE-3701) | ||||
| ACE-3952 | |
|
 |
|
|
(ACE-3702) | ||||
| ACE-3962 | |
|
|
 |
|
(ACE-3802) | ||||

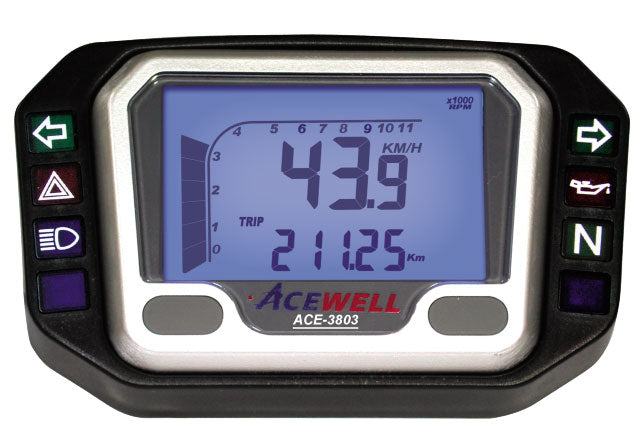

| ACE-3963 | |
|
|
|
|
|
non-waterproof plugs compatible with billet cases |
(ACE-3803) | ||

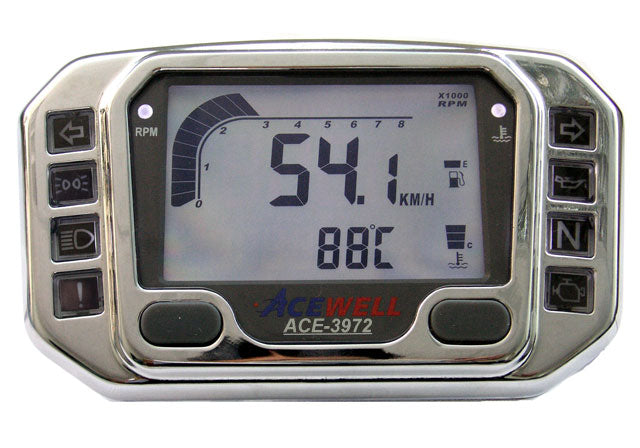

| ACE-3972 | |
|
 |
 |
|
|
 |
|
waterproof plugs compatible with billet cases |
|

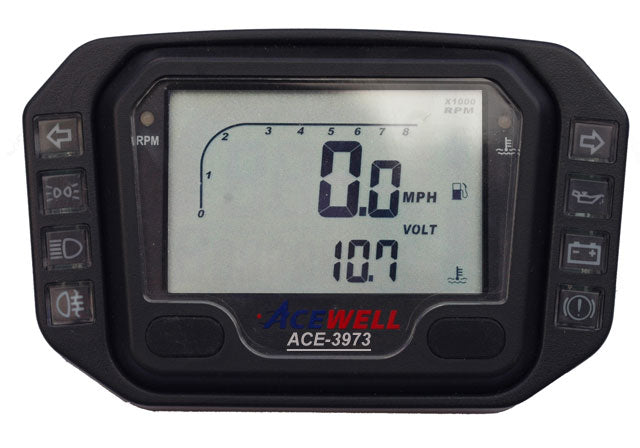

| ACE-3973 | |
|
|
 |
 |
|
 |
|
||
| ACE-3993 | |
|
|
|
|
|
| Functions | Symbol | Specification |
|---|---|---|
| Bar Graphic Tachometer | 250 - 8,000 RPM / 500 - 16,000 PRM | |
| Digital Tachometer and warning | RPM | 10-19900RPM, 100RPM increment |
| Speedometer | KM/H / MPH | 2.4-399km/h 248.5mph |
| Trip meter 1 & 2 | TRIP 1/2 | 0.0 - 999.9 km/miles |
| Odometer | ODO | 0-999999 km / 0-624999 miles |
| 12 / 24 hour clock | 0:00 - 11:59 / 23:59 | |
| Average Speed | AVG | 2.4 - 399KM/H (248MPH) |
| Riding Timer | RT | 0-9999H59 |
| Maximum Speed | MAX | 2.4 - 399KM/H (248MPH) |
| Total Riding Time | TT | 0-999999H |
| Bar-Fuel Meter | + 100/250/510 ohms and off | |
| Voltmeter | V | 8v - 18v |
