ACE-3986W-ACUMEN Acewell Acumen speedometer replacement for CCM

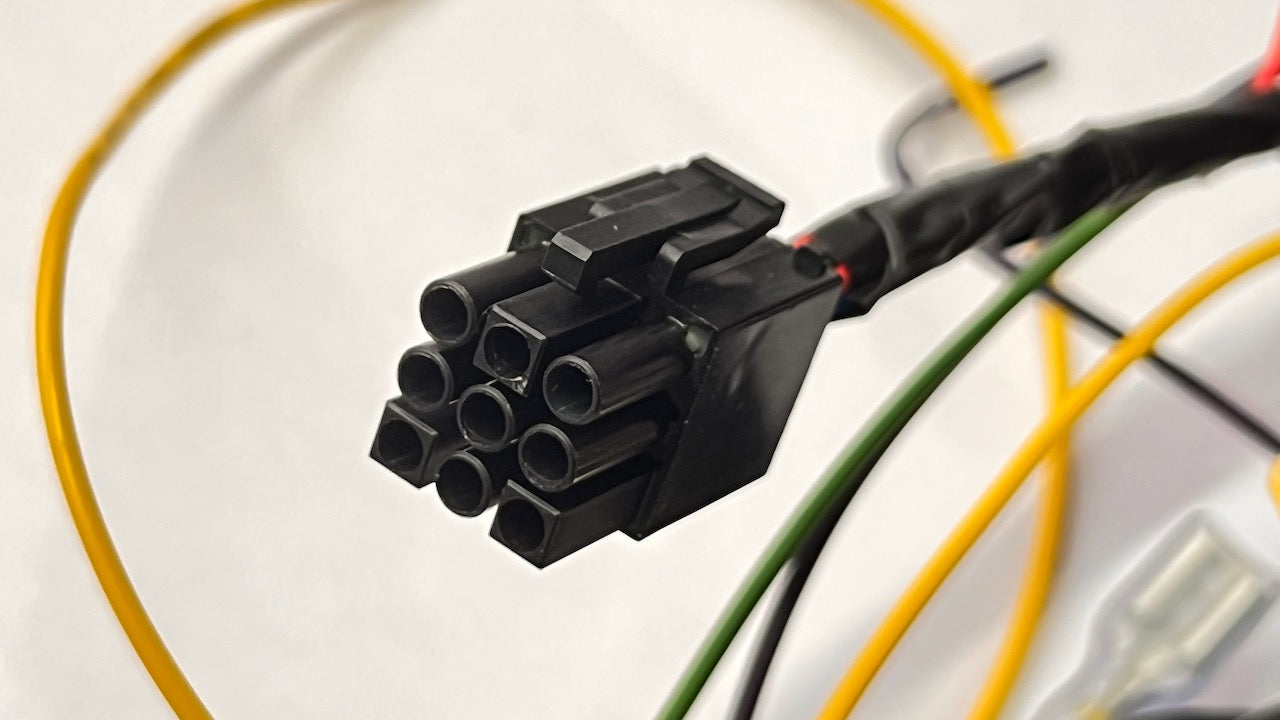

This speedometer can be fitted to a CCM 404 DS / 644 DS / FT35 / R30 to replace an original failed Acumen speedometer. Connect 9 pin plug to original speedo connector Connect green wire to right indicators Connect grey wire to left indicators Connect yellow wire to black wire on the coil Speedometer wiring diagram : Wiring diagram for CCM 404 DS Wiring diagram for CCM 644 DS
